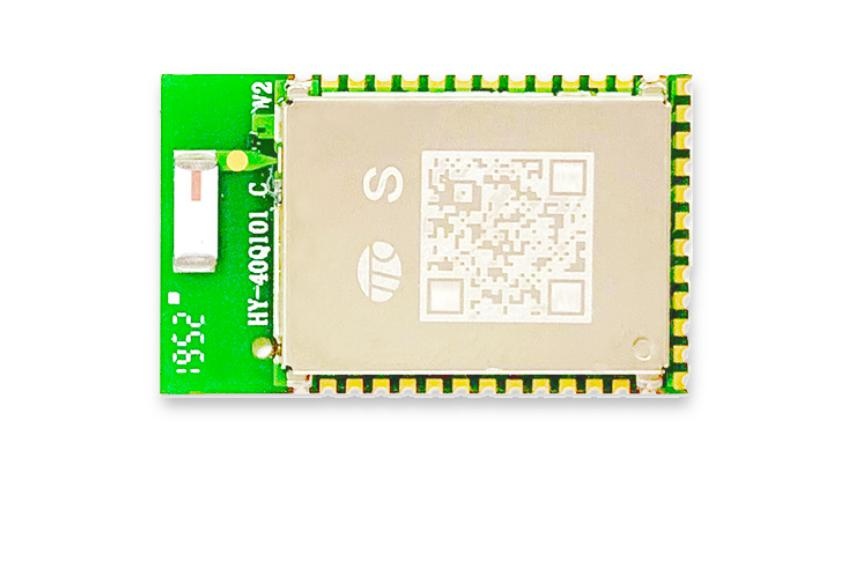

AEC-Q100 Automotive grade TI CC2640R2F-Q1 module
Basic Parameter
|
Bluetooth module model |
BLM-40Q01C |
|
Bluetooth version |
BLE 5.0 |
|
Chipset |
TI CC2640R2F |
|
Transmit power |
-21dBm to +5dBm |
|
Dimension |
25.16mm*15.22mm*2.0mm |
|
Sensitivity |
‐97dBm |
|
Transmit range |
80meters |
|
Work temperature |
-40℃~+105℃ |
|
Antenna type |
ceramic antenna |
Feature
● Bluetooth low energy single-mode module that complies with the AEC-Q100 automotive specification level 2 temperature range (-40℃~+105℃).
● Bluetooth low energy single-mode module of car specification is a Bluetooth device for low-power sensors and message transmission.
● Bluetooth low energy single-mode module of car specification is a Bluetooth device for low-power sensors and message transmission.
● It can be directly powered by a standard 3V button battery or a pair of AAA batteries. In the lowest power shutdown mode, it only consumes 0.15uA and wakes up within a few microseconds.
Application
● TPMS
● Car automatic lock
● Parking space record
● Electric car anti-theft device
● Data collection and monitoring
Application
● TPMS
● Car automatic lock
● Parking space record
● Electric car anti-theft device
● Data collection and monitoring
