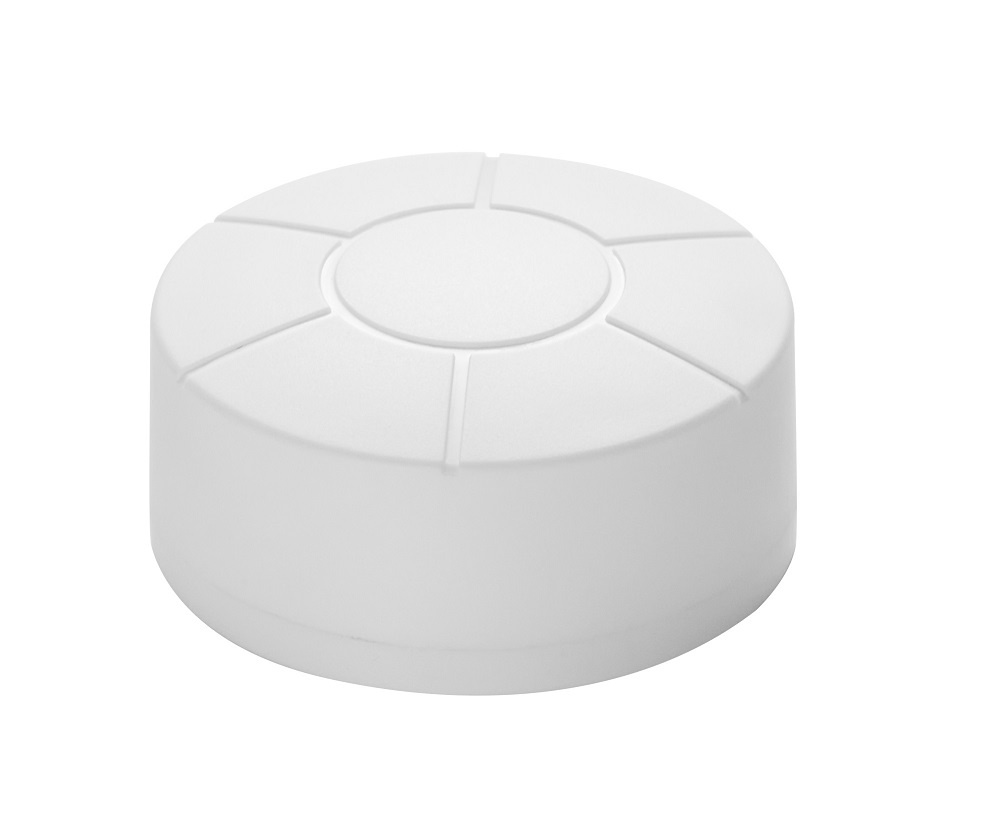

Long Time IP67 Bluetooth 4.2 Beacon
BLM-KTB801 is a Bluetooth4.2 beacon based on low power Bluetooth chip Nordic nfr52810, which is powered by two ER14250 batteries and can be used for up to 9 years.
BLM-KTB801 can broadcast UUID, Major, Minor, RSSI, battery power, Bluetooth name, Bluetooth MAC address and other information, where UUID, Major, Minor, Bluetooth name can be set through the mobile phone APP.
BLM-KTB801 broadcast distance can reach 80 meters, using 3M glue can be easily installed and fixed. It supports IP67 waterproof grade, meet indoor and outdoor application.
|
Bluetooth Beacon |
BLM-KTB801 |
|
Bluetooth version |
Bluetooth 4.2 |
|
Chipset |
Nordic nrf52810 |
|
Size |
53.86*24.93 mm |
|
Power Supply |
2*ER14250 |
|
Material |
ABS plastic |
|
Color |
White or customized |
|
TX power |
-20dBm to +4dBm |
|
Battery Life |
9 Years (ADV Interval = 500ms; TX Power=0 dBm) |
|
Antenna |
PCB antenna |
|
Operating temperature |
-40°C to +85°C |
|
Protection |
IP67 |
● IP67 Waterproof Grade
● Bluetooth 4.2 Low Energy
● Nordic nrf52810
● 9 years long time work with ER14250 of lithium batteries
● Pre-programmed with Standard Beacon Firmware
● Customizable Color, Logo, Hardware, Software
Applications:
● Asset Tracking
● Indoor Locating
● Advertising
● Proximity Marketing
● Smart Building
