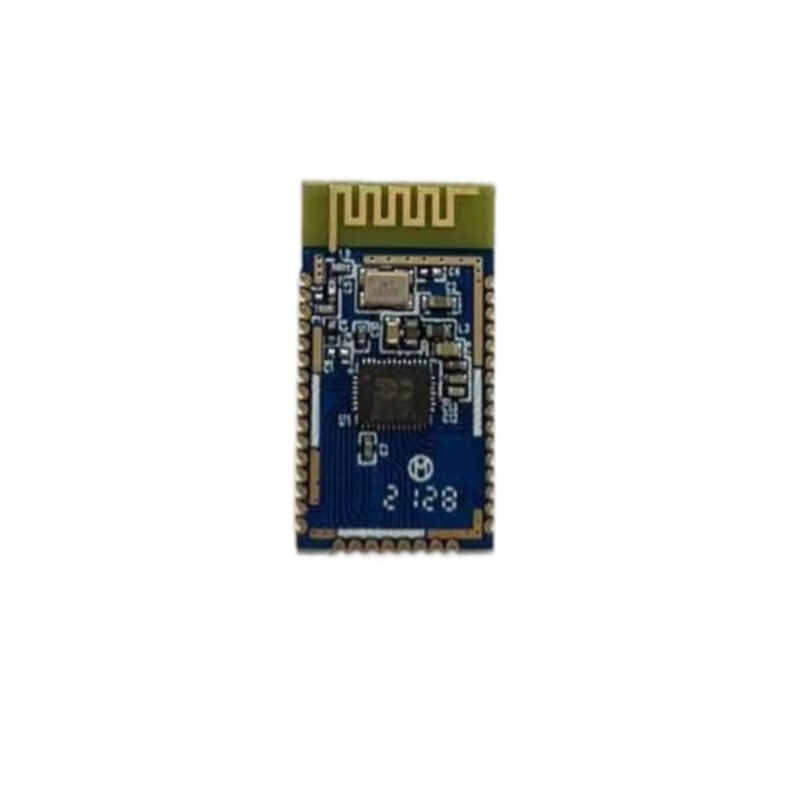

Bluetooth 5.2 Audio Module Beken BK3288 Chip



Bluetooth module model	F-6990
Bluetooth version	BluetoothV5.2
Chipset	Beken BK3288
Modulation mode	GFSK, π/4DQPSK,8DPSK
Service voltage	3.3-4.2V
Bluetooth protocol	HFPV1.6, HSPV1.2, A2DPV1.2, AVRCPV1.0, PBAP, SPP, OPP, GOEP, FTP, HID
Working Current	≤30mA
Interface	PIO, SPI, AIO, UART, USB, I2S, MIC, LIN, SPK(L/R)
Standy Current	<50uA
Temperature range	-40ºCto+80ºC
Wireless transmission range	＞10 meters
Support system	android，IOS and windows
Module size	25*13.5*2mm

F-6990 is an intelligent dual-mode wireless audio data transmission product. It is a high-end and high-efficiency stereo wireless transmission solution. The module uses the Beken BK3288 chip to provide the module with high-quality sound quality and compatibility, and the overall performance is more optimized.

The module supports intelligent voice prompt and number reporting function; integrated TF card playback function; infrared remote control; supports internal LINE-IN; supports ENC call noise reduction.



1. Bluetooth 5.2 dual mode module

2. Support analog audio and I2S audio interface

3. Support ENC

4. UART（I2C / SPI）USB 2.0



• Bluetooth audio

• Bluetooth earphone

• Hands-free phone

• Bluetooth wireless audio transmission

• Bluetooth data transmission application

• Support mobile internet peripheral devices

• Bluetooth smart speaker
