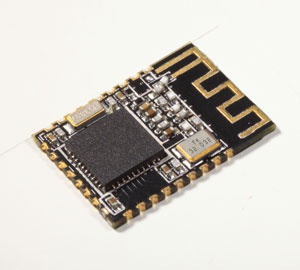

CC2541 F-9088 BT Data transfer Module

  • Product No.: F-9088



Model F-9088
Bluetooth Version Bluetooth V4.0
Working Voltage 2.0 ~3.6 v
V4.0 Bluetooth protocol ATT,GATT,SMP,L2CAP,GAP
Working Current ≤10mA
Dormancy Current <1uA
Temperature range -20ºC to +80ºC
Wireless transmission range: 0~100 meter
Power UP to 4dBm
Sensitivity -93dBm<0.1%BER
Frequency: 2.4GHz-2.480GHz
External Interface: IO,UART,SPI,USB2.0,PWM,ADC
Dimension 16.6*12.2*1.8mm

Product Overview:

1.F-9088 bluetooth two-way unvarnished transmission on Android (4.4 compatible, 4.3 only support unidirectional transmission) and IOS system .
2.Serial port design, Two-way communication, Boud rate range 9600 ~ 115200bps.
3.Default 500ms connect interval , connecting quickly.
4.Support AT command software reset module to obtain MAC address.
5.Support AT command to adjust bluetooth connection interval, control different forwarding rate.
6.Support AT command to adjust transmitting power, modify broadcast interval,customize broadcast data, set data delay ,modify serial baud rate、module name, all can be saved when power down.
7.Serial port data package length unvarnished transmission 20byte per time.
8.Standby mode with super-low power consumption, CC2541 chip official data sleep mode current 0.4uA, Module power consumption as below:

Event Average Current Testing condition
Dormancy 1uA
Broadcast 500uA Boadcasing interval 100ms , RTS = 1
Connecting 500uA Connecting interval 500ms ,RTS = 1
Serial port transmission 8mA RTS = 1
Serial incept 8mA RTS = 0
