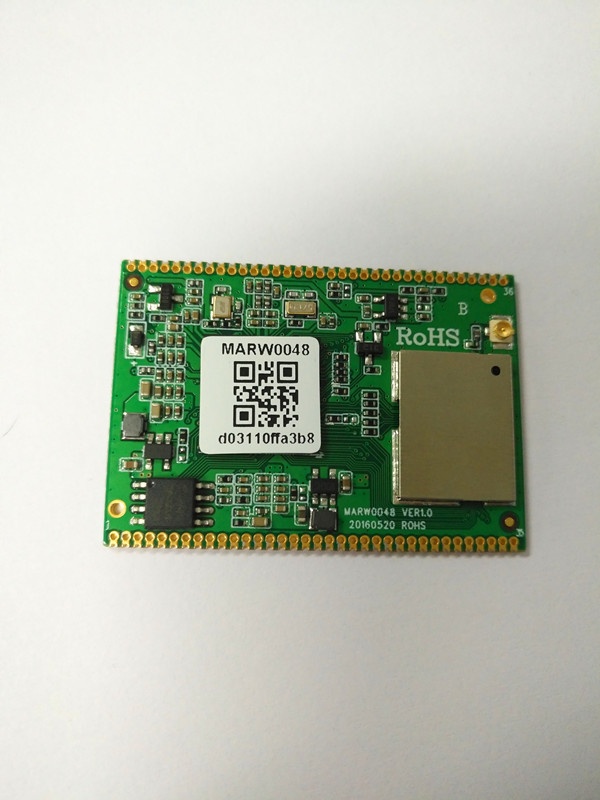

Smart WIFI audio module MARW0048
Product overview:
MARW0048 smart WiFi Audio，is an integrated wi-fi/BT/FM wireless Audio solutions,through wireless transfer audio and control signals. WiFi support mainstream Airplay/DLNA/QPLAY agreement, support the format Audio file playback, the highest support 32 bit / 384 KHZ file playback, HiFi sound quality. BT4.0 comprehensive support A2DP and HFP support intelligent voice search and voice control. Through the intelligent devices can play local and online audio. A complete set of scheme including hardware module, host firmware and client software, and cloud service.
MARW0048 smart WiFi Audio，is an integrated wi-fi/BT/FM wireless Audio solutions,through wireless transfer audio and control signals. WiFi support mainstream Airplay/DLNA/QPLAY agreement, support the format Audio file playback, the highest support 32 bit / 384 KHZ file playback, HiFi sound quality. BT4.0 comprehensive support A2DP and HFP support intelligent voice search and voice control. Through the intelligent devices can play local and online audio. A complete set of scheme including hardware module, host firmware and client software, and cloud service.
Features:
Adopt junzheng X1000 processors, the highest running 1.0 GHz, high performance, low power consumption
Support 32 MB LPDDR (X1000 built-in), 16 MB SPI Flash (compatible with big capacity of SPI NAND)
Support wi-fi 2.4 GHz IEEE 802.11 b/g/n (1T1R)
Support Bluetooth 4.0
WIFI/BT/FM, are free to switch .
Acquired QPLAY2.0 certification, support all the features of QQ music player
Support compatible DLNA/AIRPLAY.
Support all formats of audio decoding, including MP3, WMA, RA, AAC, WAV, AAC +, ALAC, WMA, APE, FLAC, etc
Support 24 bit / 192 KHZ music playback, support the highest quality HIFI
Support voice control, voice search function.
Support software update feature (online or local upgrade), automatic upgrade failure recovery mechanism
Main interface module and characteristics :
Module using 32 bit Xburst 1.0 GHz, ultra-low power consumption. Main interface include the Line IN, Line OUT, I2S, I2C, UART and USB, GPIO, SD Card, OTG, infrared, MIC interface.
Adopt junzheng X1000 processors, the highest running 1.0 GHz, high performance, low power consumption
Support 32 MB LPDDR (X1000 built-in), 16 MB SPI Flash (compatible with big capacity of SPI NAND)
Support wi-fi 2.4 GHz IEEE 802.11 b/g/n (1T1R)
Support Bluetooth 4.0
WIFI/BT/FM, are free to switch .
Acquired QPLAY2.0 certification, support all the features of QQ music player
Support compatible DLNA/AIRPLAY.
Support all formats of audio decoding, including MP3, WMA, RA, AAC, WAV, AAC +, ALAC, WMA, APE, FLAC, etc
Support 24 bit / 192 KHZ music playback, support the highest quality HIFI
Support voice control, voice search function.
Support software update feature (online or local upgrade), automatic upgrade failure recovery mechanism
Main interface module and characteristics :
Module using 32 bit Xburst 1.0 GHz, ultra-low power consumption. Main interface include the Line IN, Line OUT, I2S, I2C, UART and USB, GPIO, SD Card, OTG, infrared, MIC interface.
