High Quality Bluetooth 5.1 Audio Module Qualcomm QCC3024 QCC3034 Chip

High Quality Bluetooth 5.1 Audio Module Qualcomm QCC3024 QCC3034 Chip
  • High Quality Bluetooth 5.1 Audio Module Qualcomm QCC3024 QCC3034 Chip

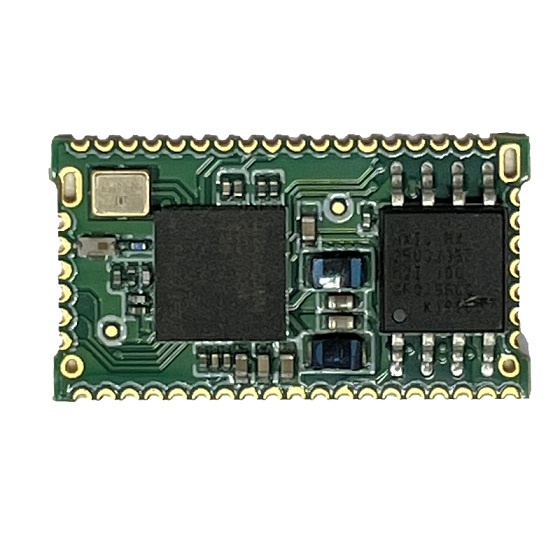

F3024 is high quality Bluetooth 5.1 audio module with Qualcomm QCC3024/ QCC3034 chip, the module support aptX, aptX HD audio codec for the stereo audio.


  • Product No.: F-3024

Details

Parameters:

Bluetooth module model

F-3024

Bluetooth version

BluetoothV5.1

Chipset

QCC3024/ QCC3034

Modulation mode

GFSK, π/4DQPSK,8DPSK

Service voltage

3.3-4.2V

Bluetooth protocol

HFPV1.6, HSPV1.2, A2DPV1.2, AVRCPV1.0, PBAP, SPP, OPP, GOEP, FTP, HID

Working Current

30mA

Interface

PIO, SPI, AIO, UART, USB, I2S, MIC, LIN, SPK(L/R)

Standy Current

<50uA

Temperature range

-40ºCto+80ºC

Wireless transmission range

10 meters

Support system

androidIOS and windows

Audio decoding output

AAC, SBC,  APTX, APTX HD

Module size

11.01*20.04*2.7mm


Product overview:

F3024 is an intelligent dual-mode wireless audio data transmission product. It is a high-end and high-efficiency stereo wireless transmission solution. The module uses the QCC3024/QCC3034 chip to provide the module with high-quality sound quality and compatibility, and the overall performance is more optimized.

F3024 (QCC3024/QCC3034) Bluetooth module adopts a driver-free mode. Customers only need to connect the module to the application product to quickly realize the wireless transmission of music and enjoy the fun of wireless music.


Features:
  • Bluetooth 5.1 dual mode module
  • Support analog audio and I2S audio interface
  • Support CVC
  • SBC, ACC, aptX codec
  • UARTI2C / SPIUSB 2.0



Application subsystem:
  • Bluetooth audio
  • Bluetooth earphone
  • Hands-free phone
  • Bluetooth wireless audio transmission
  • Bluetooth data transmission application
  • Support mobile internet peripheral devices
  • Bluetooth smart speaker

Documentation:

Name: F3024 Datasheet                                        Download
