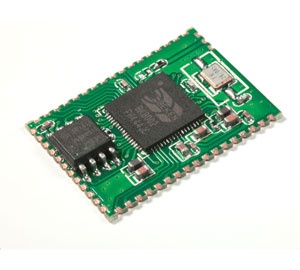

BK8002 F-6588 Bluetooth audio module

BK8002 F-6588 Bluetooth audio module
  • BK8002 F-6588 Bluetooth audio module

low cost bluetooth module ,stereo audio module,support smart voice prompt and report function .


  • Product No.: F-6588

Details

Parameters:
Model F-6588
Bluetooth version Bluetooth V2.1
Supply Voltage DC2.8-4.2V
Bluetooth protocol HFPV1.5, A2DPV1.2,AVRCPV1.4,HSP1.2, GAVDP1.2,IOP
Working current ≤60mA
Standby current <500uA
Temperature range -40ºC to +85ºC
Wireless transmission range >10 m
Transmission power CLASS2,4dbm
Sensitivity -80dBm<0.1%BER
Frequency range 2.4GHz-2.480GHz
External interface I2C, SPI and UART interface
Audio performance SBC algorithm
The audio SNR ≥75dB
Module dimension 22.8X16.5X1.8MM

Product overview:

    F-6588 is the Bluetooth 2.1 module for intelligent wireless audio transmission products designed by our company  . F-6588 also is the low cost stereo audio Bluetooth solution with high performance. The main chip uses BEKEN  BK8002 chip, providing the high quality and best compatibility. Without any driver, you can connect the module with your device to enjoy the high quality music easily.Support smart voice prompt and report function;with TF card play function;support MP3/WMA/WAV format; support internal LINE-IN;external FM.
