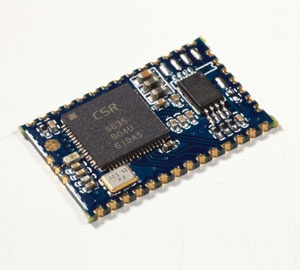

CSR8635 Stereo Audio Bluetooth Module F-3288

CSR8635 Stereo Audio Bluetooth Module F-3288
  • CSR8635 Stereo Audio Bluetooth Module F-3288

Description: CSR8635 Bluetooth audio module provides a fully integrated solution for delivering high-quality stereo audio in a small form factor. It combines a Class 2 Bluetooth radio with an embedded DSP processor, controlled and configured by simple AS

  • Product No.: F-3288


Module F-3288
Bluetooth version Bluetooth V4.0
Modulation GFSK, π/4 DQPSK, 8DPSK
Power supply voltage 3.3-4.2V
Bluetooth Protocol HFP V1.6, HSP V1.2, A2DP V1.2,AVRCP V1.4,DI V1.3
Working current ≤30mA
Standby current <50uA
Temperature range -40ºC to +80ºC
Transmission range >10m
Transmission Power Support CLASS1/CLASS2/CLASS3  MAX 8dBm
Sensitivity -80dBm<0.1%BER
Frequency range 2.4GHz-2.480GHz
External interface PIO, SPI,Audio in/out and PCM,USB
Audio performance Support AAC, MP3, SBC,stereo
Audio SNR ≥75dB
Distortion ≤0.1%
Dimension 21.9X14.1*1.8MM

Product Overview:
F-3288 Bluetooth module is made by our company, is a stereo radio transmission scheme of low cost and high efficiency, mainly uses CSR 8635 chip with high quality sound and compatibility for the module, the overall performance is better and with free driving mode, customers only need to access the application module products, wireless transmission can quickly realize the music, enjoy wireless music。
