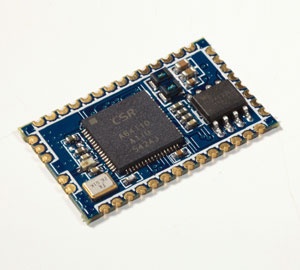

CSR64110 F-3299 BT Audio Module

CSR64110 F-3299 BT Audio Module
  • CSR64110 F-3299 BT Audio Module

Apply to Bluetooth speaker, Bluetooth stereo headphones, hands-free calling, bluetooth wireless audio transmission etc.

  • Product No.: F-3299



Model F-3299
Bluetooth version Bluetooth V4.2
Modulation mode π/4 DQPSK, 8DPSK
Voltage 3.3-4.2V
Bluetooth protocol HFP V1.6, HSP V1.2, A2DP V1.3,AVRCP V1.6,DI V1.3
Working Current ≤30mA
Standy Current <50uA
Temperature range -40ºC to +80ºC
Wireless transmission range More than 10 meters
Power Support CLASS1/CLASS2/CLASS3  Up to 9dBm
Sensitivity -92.0 dBm (typ) ∏/4 DQPSK receiver sensitivity
  -82.0 dBm (typ) 8DPSK receiver sensitivity
Frequency 2.4GHz-2.480GHz
External Port PIO/SPI debug/PCM/IIS/Audio in/out/MIC/USB
Audio performance aptX, aptX Low Latency, SBC and AAC
Audio SNR ≥75dB
Distortion measure ≤0.1%
Module dimension 23.8×14.9×1.8MM

Main Features:

1.Wireless audio transmission, stereo solution
2.Support True Wireless Stereo (TWS), to implement wireless stereo effect.
3.Support analog and digital audio output (Analogue/PCM/I²S)
4.It adopted high integration density module design, maximally simplified the application mode, apply to serials of audio devices more effectively and implementing wireless audio transmission
5.TrueWireless Stereo (TWS)
6.Multipoint support for A2DP
7. 10 EQ adjustment built-in
8.MeloD Expansion 3D, Support 3D audio
9.Support dynamic range of Audio compression
10.Support Multiple languages
