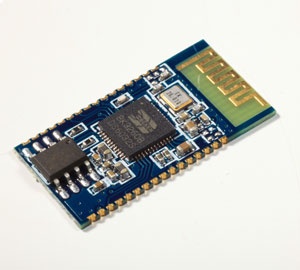

BK3260 F-6988 Bluetooth Audio Module
Parameters:
|
Model |
F-6988 V1.0 |
|
Bluetooth version |
Bluetooth V4.0 |
|
Voltage |
DC2.8-4.2V |
|
BT protocol |
HFPV1.5, A2DPV1.2, AVRCPV1.0 |
|
Current |
≤30mA |
|
Standby current |
<500uA |
|
Temperature range |
-40ºC TO +85ºC |
|
Wireless transmission range |
70~75ft |
|
Power |
CLASS2，4dbm |
|
Sensitivity |
-80dBm<0.1%BER |
|
Frequency |
2.4GHz-2.480GHz |
|
External interface |
I2C, and UART interface |
|
Audio performance |
SBC decode |
|
Audio SNR |
≥75dB |
|
Module Dimension |
25X13.5X1.8MM |
