IP67 Waterproof BLE4.2 Beacon Support iBeacon

IP67 Waterproof BLE4.2 Beacon Support iBeacon
  • IP67 Waterproof BLE4.2 Beacon Support iBeacon

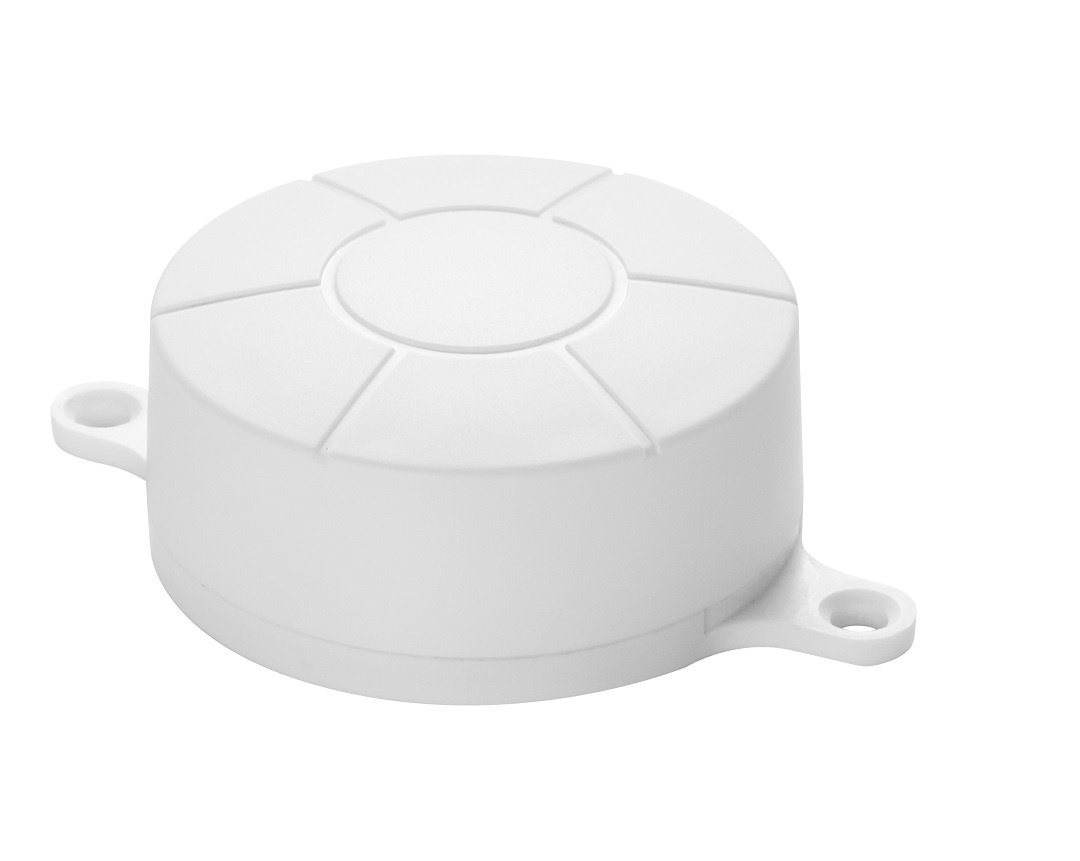

BLM-KTB801E is a IP67 Waterproof BLE4.2 Beacon based on Bluetooth low energy chip Nordic nrf52810, It support screw installation for iBeacon indoor position.


  • Product No.: BLM-KTB801E

Details

Overview:

BLM-KTB801E is a BLE4.2 beacon based on low power Bluetooth chip Nordic nfr52810, which is powered by two ER14250 batteries and can be used for up to 9 years.

BLM-KTB801E can broadcast UUID, Major, Minor, RSSI, battery power, Bluetooth name, Bluetooth MAC address and other information, where UUID, Major, Minor, Bluetooth name can be set through the mobile phone APP.

BLM-KTB801E broadcast distance can reach 80 meters, using screw installation for indoor location application. It supports IP67 waterproof grade, meet indoor and outdoor application requirement.



Basic Parameter:

Bluetooth Beacon

BLM-KTB801E

Bluetooth version

Bluetooth 4.2

Chipset

Nordic nrf52810

Size

53.86*24.93 mm

Power Supply

2*ER14250

Material

ABS plastic

Color

White or customized

TX power

-20dBm to +4dBm

Battery Life

9 Years (ADV Interval = 500ms; TX Power=0 dBm)

Antenna

PCB antenna

Operating temperature

-40°C to +85°C

Protection

IP67


Feature:
  • IP67 Waterproof Grade
  • Bluetooth 4.2 Low Energy
  • Nordic nrf52810
  • 9 years long time work with ER14250 of lithium batteries
  • Pre-programmed with Standard Beacon Firmware
  • Customizable Color, Logo, Hardware, Software
Application
  • Asset Tracking
  • Indoor Locating
  • Advertising
  • Proximity Marketing
  • Smart Building
