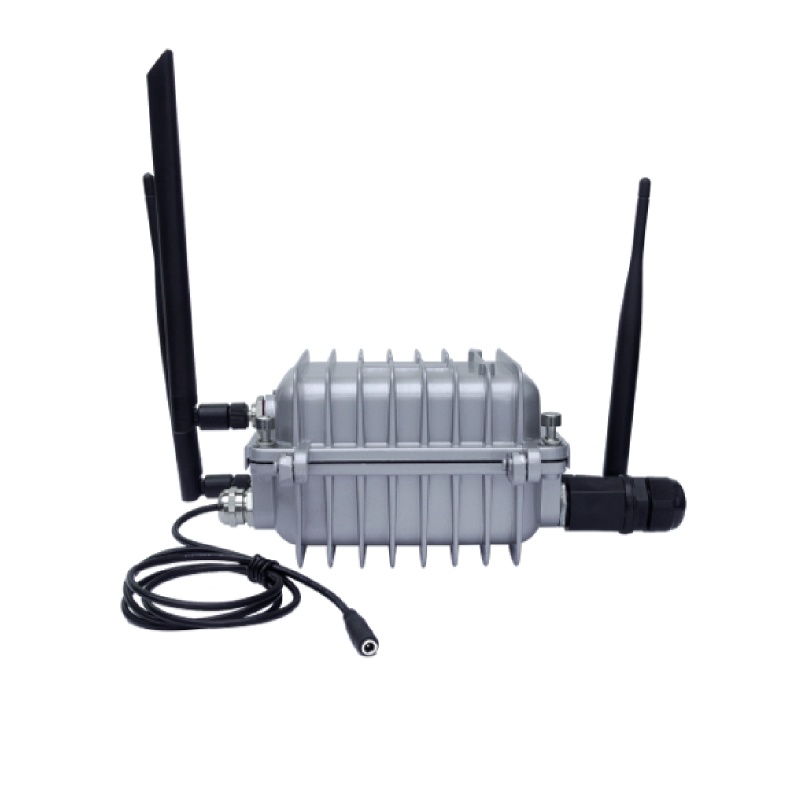

IP67 Waterproof Outdoor Bluetooth 5.0 Gateway
Outdoor Bluetooth gateway KTB602M can support POE power supply) or power adapter power supply (wide voltage range: 6V-24V); it can be compatible with different Bluetooth terminal devices, which is convenient for users to perform Bluetooth terminal devices (such as Bluetooth bracelets, Bluetooth skipping ropes, Bluetooth door locks, Data acquisition and remote control of various Bluetooth sensors, etc.,
Basic Parameter:
|
Model |
BLM-KTB602M |
|
Size |
124*40mm |
|
Power |
DC6-28V（2A） PoE |
|
Working Current |
280mA@12V（Include 4G） 180mA@12V |
|
Work Temperature |
-20℃~70℃ |
|
Port |
Network port, power port, reset button |
|
Wi-Fi |
|
|
Wi-Fi Protocol |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|
Data Rate |
IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps |
|
IEEE 802.11 g Standard Mode: 6,9,12,18,24,36,48,54Mbps |
|
|
IEEE 802.11n: 72Mbps @HT20 150Mbps @HT40 |
|
|
Receive Sensitivity |
HT40 MCS7: -67dBm@10% PER(MCS7) |
|
HT20 MCS7: -73dBm@10% PER(MCS7) |
|
|
54M: -76dBm@10% PER |
|
|
11M: -91dBm@ 8% PER |
|
|
TX Power |
IEEE 802.11n: 15dBm @HT40 MCS7 15dBm@HT20 MCS7 |
|
IEEE 802.11g: 16dBm |
|
|
IEEE 802.11b: 18dBm |
|
|
Wireless Security |
WPA/WPA2, WEP, TKIP, and AES |
|
Work Mode |
Bridge、Gateway、AP Client |
|
Bluetooth |
|
|
Bluetooth Protocol |
Bluetooth ® 5.0 |
|
Data Rate |
Uncoded: 1Mbps/2Mbps |
|
Wireless Security |
AES HW Encryption |
|
Connection Range |
100m |
|
TX Power |
0~+18dBm |
|
4G LTE |
|
|
Communication Protocol |
LTE-TDD/LTE-FDD/TD-SCDMA/UMTS/ EVDO/EDGE/GPRS/GSM/CDMA |
Features:
● Support PoE power supply or power adapter power supply;
● Support IEEE 802.11n, IEEE 802.11g, IEEE 802.11b protocols;
● Support Bluetooth ® 4.2/5.0;
● Integrated Bluetooth PA/LNA; support LTE-TDD/ LTE-FDD/ TD/ SCDMA/ UMTS/ EVDO/ EDGE/ GPRS/ GSM/ CDMA;
● One WAN/LAN adaptive port
