BT5.0 Industrial-grade low power long range transmission Bluetooth module

BT5.0 Industrial-grade low power long range  transmission Bluetooth module
  • BT5.0 Industrial-grade low power long range  transmission Bluetooth module

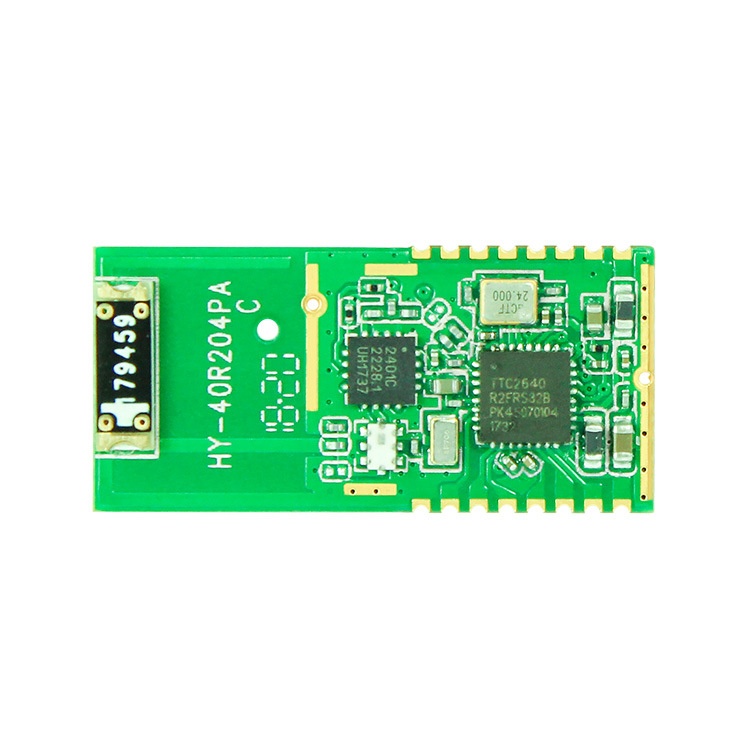

BLM-40R204CPA is a Bluetooth single-mode module with RF PA/LNB amplifier circuit, which enhances the RF transmission output power and improves the RF receiving sensitivity.


  • Product No.: BLM-40R204CPA

Details


Basic Parameter

Bluetooth module model

BLM-40R204CPA

Bluetooth version

BLE 5.0

Chipset

TI CC2640R2

Transmit range

300 meters

Frequency Range

2402-2480MHZ(2.4G ISM Frequency band

Antenna type

Ceramic antenna

Dimension

11.81*24.99*2.0mm

Certification

BQB, CE, ROHS, REACH

Interface

UART, SPI

TX power

-5dBm to +18dBm



Feature
 ● TI CC2640R2F
 ● Bluetooth 5.0 Low Energy Module
 ● Industrial grade BLE
 ● Long range transmission
 ● Ultra-low current consumption



Application
 ● Health medical device
 ● Home and building automation
 ● Sports and fitness equipment
 ● Automotive
