Bluetooth 5.0 300 meters transmit range industrial module

Previous Product: <a href="/e_productshow/?195-BLE50-master--slave-Ultra-low-current-consumption-bluetooth-module-195.html" title="BLE5.0 master & slave Ultra-low current consumption bluetooth module">BLE5.0 master & slave Ultra-low current consumption bluetooth module
Next Product: <a href="/e_productshow/?193-BT50-Industrial-grade-low-power-long-range--transmission-Bluetooth-module-193.html" title="BT5.0 Industrial-grade low power long range transmission Bluetooth module">BT5.0 Industrial-grade low power long range transmission Bluetooth module

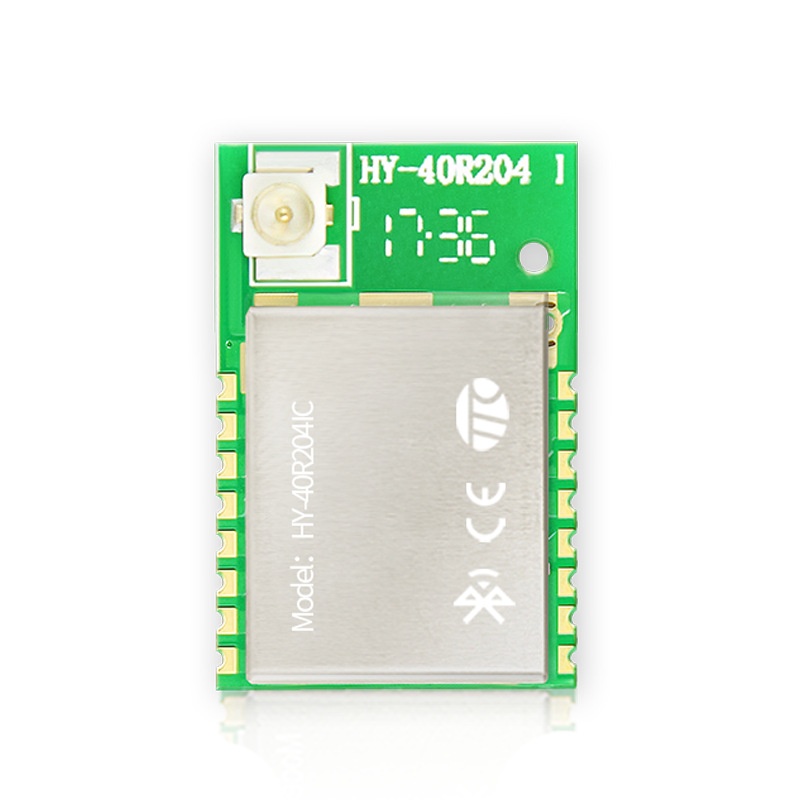

BLM-40R204IC Bluetooth low energy module (single mode) under normal circumstances, can use UART/SPI external MCU for transparent transmission of data; ultra-small size, with programmable ARM-Cortex-M3 processor (80KB available application code Space) and

Product No.: BLM-40R204IC

Online Inquiry Email Us

Details

Basic Parameter:

Bluetooth module model	BLM-40R204IC
Bluetooth version	BLE 5.0
Dimension	11.59mm17.9mm2.0mm
Transmit power	-21 to +5dBm
Operating Voltage	2.4-3.6V（DC)
Transmit range	90 meters
Antenna type	IPEX external antenna
Work temperature	-40℃ to +85℃
Certification	BQB, CE, REACH, ROHS

Feature:

● Ultra small size

● Ultra low power consumption
● Support external Antenna
● Long range work distance
● BQB, CE, REACH, ROHS

Application:

● Sports bracelet
● Smart scale
● Anti-lost
● TPMS
