BLE5.0 master & slave Ultra-low current consumption bluetooth module

Previous Product: <a href="/e_productshow/?196-BLE42-high-speed-small-size-bargin-module-196.html" title="BLE4.2 high speed small size bargin module">BLE4.2 high speed small size bargin module
Next Product: <a href="/e_productshow/?194-Bluetooth-50-300-meters-transmit-range-industrial-module-194.html" title="Bluetooth 5.0 300 meters transmit range industrial module">Bluetooth 5.0 300 meters transmit range industrial module

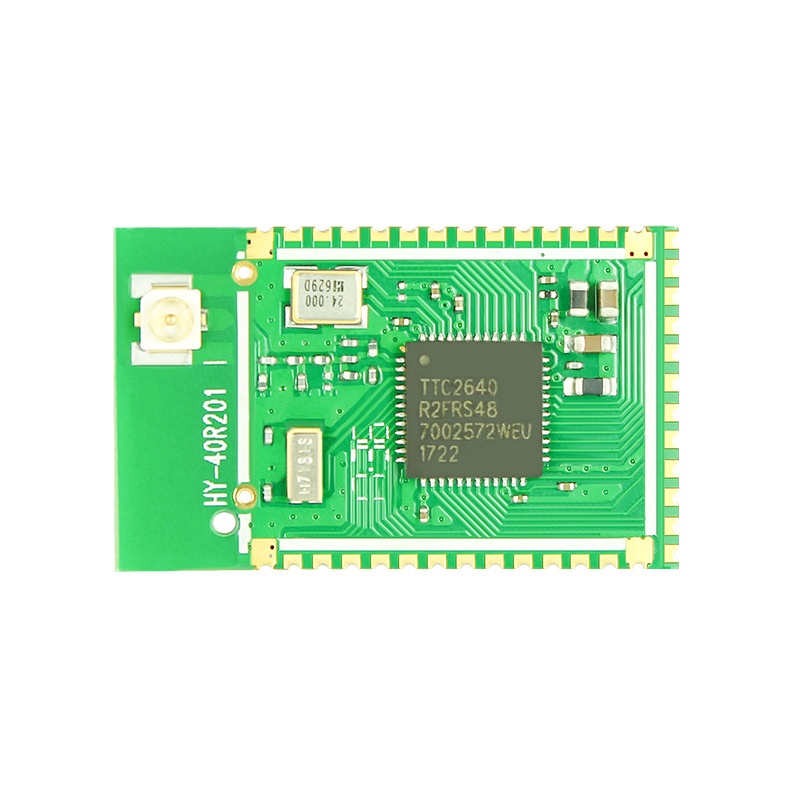

BLM-40R201P Bluetooth low energy module (single mode) under normal circumstances, can use the UART/SPI external MCU for transparent transmission of data; it has a programmable ARM-Cortex-M3 processor (80KB of available application code space) and rich The

Product No.: BLM-40R201P

Online Inquiry Email Us

Details

Basic Parameter

Bluetooth module model	BLM-40R201P
Bluetooth version	BLE 5.0
Chip	CC2640R2F
Dimension	25.16mm15.22mm2.0mm
Transmit power	-21 to +5dBm
Transmit range	80 meters
Sensitivity	‐97dBm
Interface	UART, SPI
Work temperature	-40ºC to +85ºC
Certification	BQB, FCC, CE, ROHS, REACH

Feature
● TI CC2640R2F chipset
● Bluetooth 5.0 Low Energy
● Multiple I/O ports
● Support multiple connections as slave
● BQB, FCC, CE, ROHS, REACH

Application
● Home appliances
● Automotive
● industrial control
● medical and healthcare
