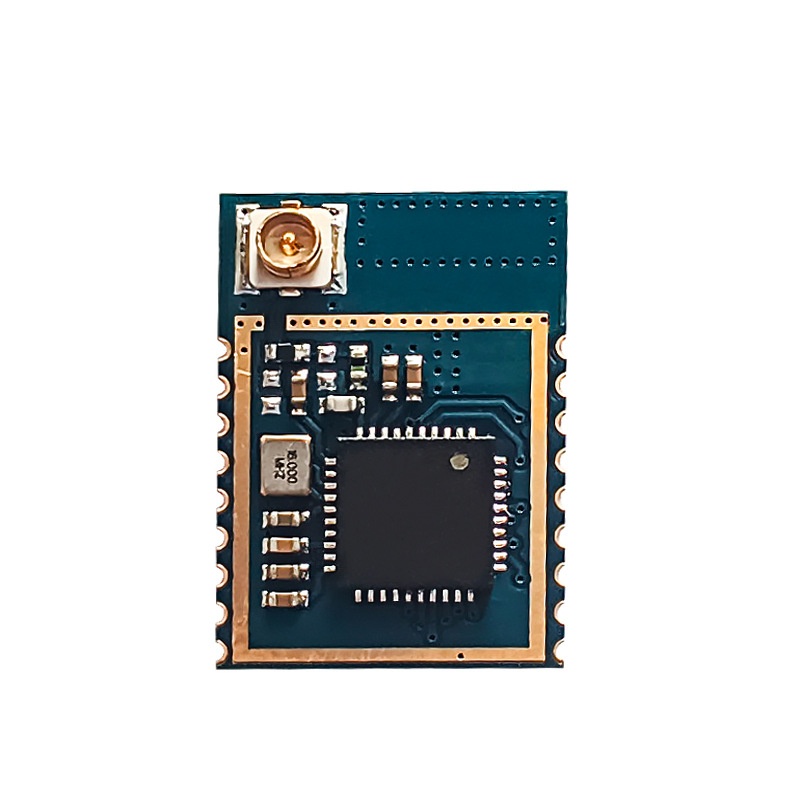

The BLM-MBD58B module is a compatible Bluetooth 4.2 low energy (BLE) single-mode Bluetooth module designed based on the Zhuosheng Microelectronics MXD2658 chip. It is mainly used in smart wearable devices, portable medical instrument, sports fitness devic

Product No.: BLM-MBD58B

Online Inquiry Email Us

Details

Basic Parameter

Bluetooth module model	BLM-MBD58B
Bluetooth version	BLE 4.2
Work frequency	2400MHz -2483.5MHz
Dimension	11mm16mm2mm
TX power	-15dbm to +7dbm
Work voltage	2.0V-3.6V
Work temperature	-20℃ to +70℃

Feature
● High-speed throughput, the fastest can reach 12KB/S, and it can work stably at 4.7KB/S;
● Support connection status, broadcast status prompt pin
● Bluetooth 4.2 Low Energy

Application

● Smart home
● Remote control device
● Bluetooth light control
● Medical instrument
