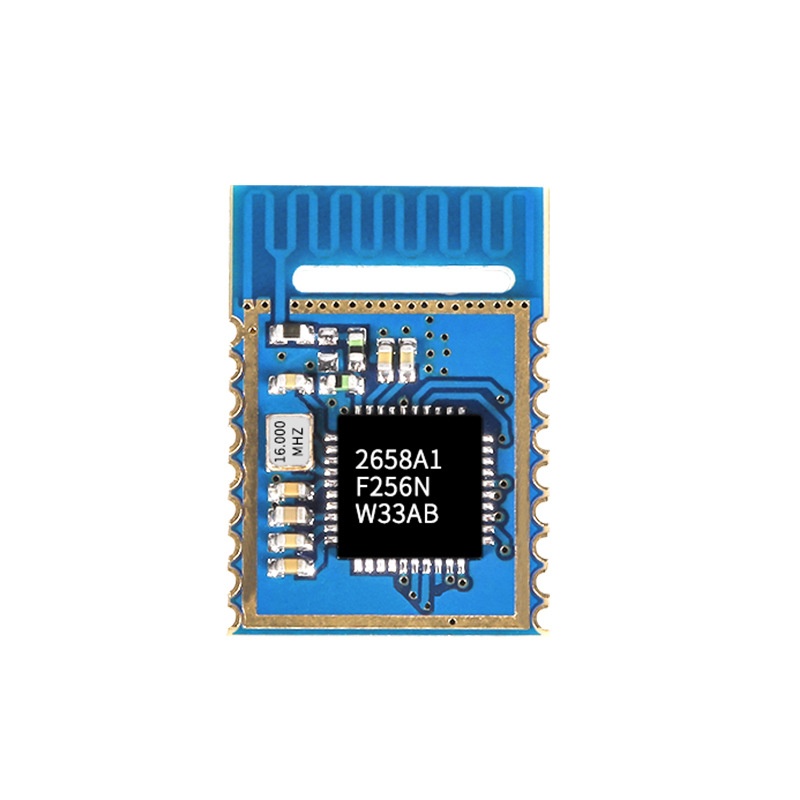

The BLM-MBD58A module is a compatible Bluetooth 4.2 low energy (BLE) single-mode Bluetooth module designed based on the Zhuosheng Microelectronics MXD2658 chip. It is mainly used in smart wearable devices, portable medical instrument, sports fitness devic

Product No.: BLM-MBD58A

Online Inquiry Email Us

Details

Basic Parameter

Bluetooth module model	BLM-MBD58A
Bluetooth version	BLE 4.2
Work frequency	2400MHz -2483.5MHz
Dimension	11mm16mm2mm
TX power	-15dbm to +7dbm
Work voltage	2.0V-3.6V
Work temperature	-20℃ to +70℃

Feature

High-speed throughput, the fastest can reach 12KB/S, and it can work stably at 4.7KB/S;
Support connection status, broadcast status prompt pin
Bluetooth 4.2 Low Energy

Application
Smart home
Remote control device
Bluetooth LED control
