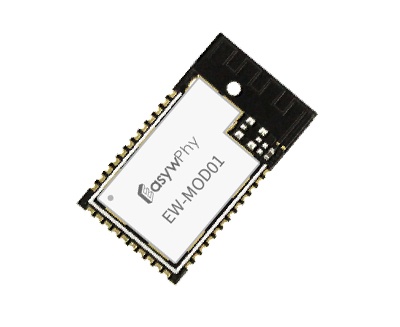

Bluetooth 5.0 master & slave high transmission rate BLE module

BLM-MOD01 is based on the Nordic solution and supports Bluetooth 4.2 and 5.0BLE protocol stacks. Its good performance, low power consumption, high receiving sensitivity, long transmission distance, support for UART/I2C/SPI communication protocol, complet

Product No.: BLM-MOD01

Online Inquiry Email Us

Details

Basic Parameter:

Bluetooth module model	BLM-MOD01
Bluetooth version	BLE 5.0
Chipset	Nordic nRF52832
Dimension	26.3mm15.2mm2.3mm
TX power	-40dBm to +4dBm
Transmit range	100 meters
Work temperature	-40℃ to +85℃

Features:

● Bluetooth5.0

● Nordic nRF52832

● Support master&slave throughput

● Built-in PCB antenna, support external IPEX antenna

● 100m long range distance in open space

Application:
● Bluetooth wireless data transmission, wireless data acquisition sensor
● Bluetooth and R2232 (RS485) serial data communication
● Bluetooth gateway, Bluetooth repeater, Bluetooth base station
● Blood glucose meter, sphygmomanometer, heart rate monitoring instrument, l
● Wearable equipment, fitness equipment
● Wireless meter reading, industrial remote control, battery management system BMS
● Bluetooth alarm, Bluetooth printer
● Bluetooth beacon ibeacon
● Access control system, smart lock, smart home, building automation
● Sign-in system, wireless billboard, electronic drawing screen
