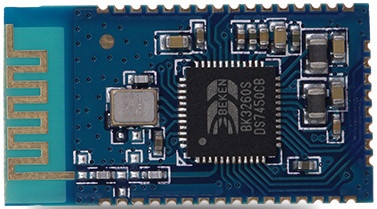

Bluetooth audio data transmission module BK3260 F-6699S
Parameters:
Product overview:
F-6699S is the Bluetooth module for itelligent wireless audio data transmisson products designed by our company .F-6699S also is the low cost wireless transmission Bluetooth solution with high performance .The main chip uses BEKEN BK3260S chip (Based on BK3260N,Added PA, LNA enable pin and BLE function). Provides high quality sound quality and compatibility for the module, and performance is superior.IWithout any driver,you can connect the module with your device to enjoy the high quality music easily and simple data transmission functions .
| Model | F-6699S |
| Bluetooth version | Bluetooth V4.2+EDR+BLE |
| Voltage | DC3.3-4.2V |
| BT protocol | A2DPv1.2,AVRCPv1.5,HFPv1.5,AVCTPv1.4,AVDTPv1.2,GAVDP v1.2,HSP v1.2 |
| Current | ≤30mA |
| Standby current | <10uA |
| Temperature range | -20ºC TO +50ºC |
| Wireless transmission range | ＞10meters(Remote transmission can be achieved by connecting PA and LNA) |
| Power | CLASS2，4dbm |
| Sensitivity | [email protected]%BER |
| Frequency | 2.402GHz-2.480GHz |
| External interface | SPI,I2C,UART,IO |
| Audio performance | SBC decode |
| Audio SNR | ≥75dB |
| Module Dimension | 25X13.4X1.8MM |
Product overview:
F-6699S is the Bluetooth module for itelligent wireless audio data transmisson products designed by our company .F-6699S also is the low cost wireless transmission Bluetooth solution with high performance .The main chip uses BEKEN BK3260S chip (Based on BK3260N,Added PA, LNA enable pin and BLE function). Provides high quality sound quality and compatibility for the module, and performance is superior.IWithout any driver,you can connect the module with your device to enjoy the high quality music easily and simple data transmission functions .
