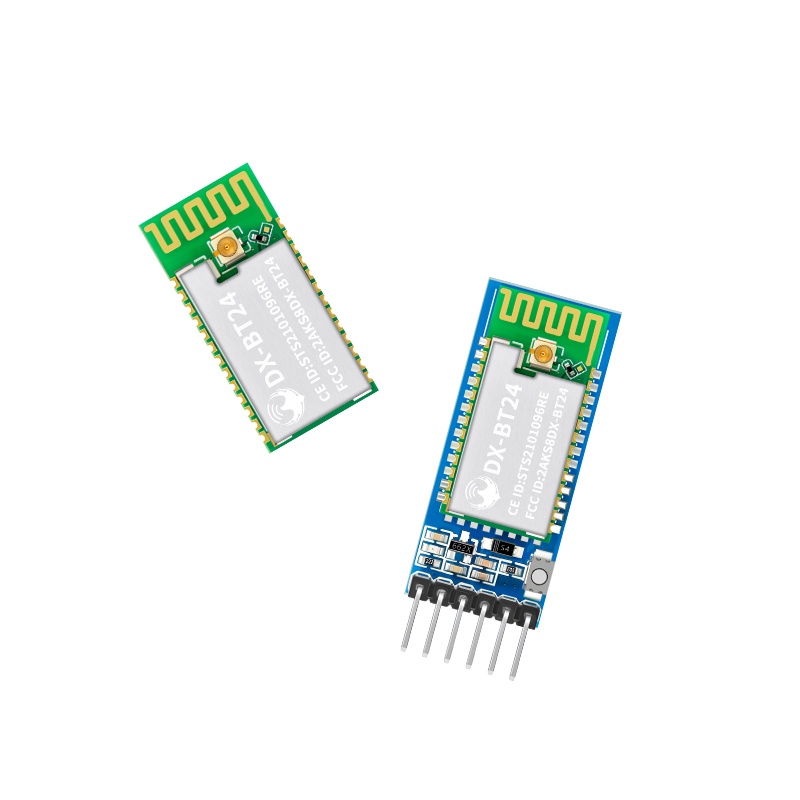

BLE 5.1 long range high speed throughput module

Previous Product: <a href="/e_productshow/?184-Bluetooth-51-small-size-ultra-low-energy-module-184.html" title="Bluetooth 5.1 small size ultra low energy module">Bluetooth 5.1 small size ultra low energy module
Next Product: <a href="/e_productshow/?178-Small-size-BLE-51-ultral-low-power-module-178.html" title="Small size BLE 5.1 ultral low power module">Small size BLE 5.1 ultral low power module

This module supports the UART interface and supports Bluetooth serial port transparent transmission. It has the advantages of low cost, small size, low power consumption, high sensitivity of sending and receiving, etc. It can realize its powerful function

Product No.: BLM-BT24

Online Inquiry Email Us

Details

Basic Parameter:

Bluetooth Module Model	BLM-BT24
Bluetooth Version	Bluetooth 5.1
Working Frequency	2.4GHzISMband
Communication Interface	UART
Power Supply	3.3V
Communication Distance	80M (Open and unobstructed environment)
Dimension	27mmx13mmx2mm
Certification	FCC CE ROHS REACH
Work temperature	MIN:-40℃-MAX:+85℃
Flash	1M

Feature:

● BLE 5.1
● Dialog DA1431
● Bluetooth Low Energy
● 10K+high-speed throuput,
● Micro-amp power consumption

Application:

● Bluetooth wireless data transmission
● Mobile phones,computer peripherals
● Handheld POS device
● Medical equipment wireless data transmission
● Smart Home Control
● Automotive Inspection OBD Equipment
● Bluetooth printer
● Bluetooth remote control toy
● Anti-lostdevice,LED light control
